Dimple Screens

Features

Dimple screens make conveyance easy, and they have superior durability despite their thinness. The protrusions allow air, gas and other substances to commutate and stir. The contact surface is also minimal, so the substances flow through with less resistance.

Uses
Various sliders, and flooring.


Download Catalog

Nunobiki Manufacturing’s commitment to detail

We manufacture to your specified pitch.
Perforated area pattern can be specified.

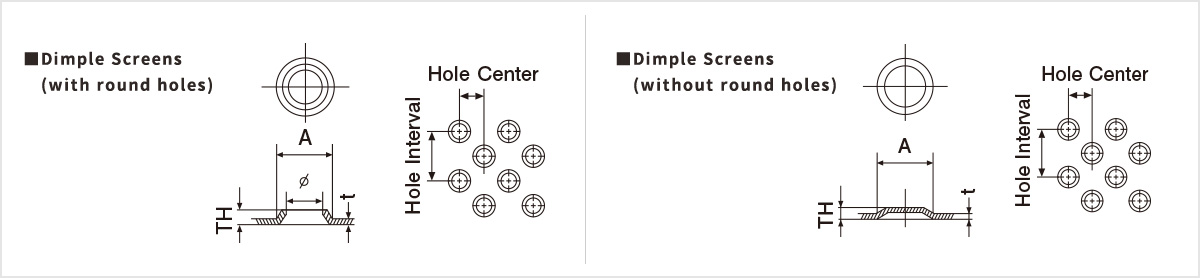

Product list

* indicates 2 process

Product No.
(* indicates 2 process)
Class Thickness[t]
(mm)
Outside Diameter[A]
(mm)
Height[TH]
(mm)
Hole Size[φ]
(mm)
Min. Hole IntervalP
(mm)
Min. Hole Center P
(mm)
SF1   0.3 10.0 1.8TH   14.1 12.9
SF2A With round holes 1.0 6.0 2.3TH 2.0 10.0 8.66
SF2B   1.0 6.0 2.7TH   10.0 8.66
With round holes 2.0 23.0 3.5TH 14.0 43.0 43.0
With round holes 1.2 28.0 3.7TH 18.0 36.0 36.0
SF5 With round holes 0.8 3.4 1.6TH 0.85 7.0 6.0
SF6   1.5 18.0 3.5TH   23.0 23.0
SF7   3.0 18.0 5.3TH   22.0 22.0
SF9   0.8 2.9 1.4TH   5.0 4.3
SF10   3.0 17.0 5.0TH   21.0 21.0
SF12   1.5 17.0 3.5TH   21.0 21.0
SF14   1.2 7.5/6.0 Ellipse 1.8TH   10.5 9.3
SF16 Hexagon 1.2 8.0 Hexagon 2.0TH   13.8 4.0
SF17   1.5 22.5 3.5TH   26.5 26.5
SF18 With round holes 1.2 10.0 3.0TH 5.0 13.0 13.0
SF19   0.2 1.9     3.0 3.0
SF20   0.4 3.0/3.0 Square 1.3TH   4.2 4.2
SF21   0.3 4.0 0.8TH   5.0 4.33

* Inquire about other specification not listed above.
