Slotted, Herringbone, and Square Hole Screens

Features

Nunobiki Manufacturing produces seamless, wider products using our dies, which are made with proprietary die machining technology. As with the round hole screens, we can mostly process sheets and coils with thickness 1.0t or even thinner.

Uses
Filters, grinders, centrifuges, ball mills, food industry, and chemical industry and other industries


Download Catalog

Nunobiki Manufacturing’s commitment to detail

We perforate sheets with small holes.
We provide high-precision perforated screens by punching the full width of screens in one press.

Product list

Slotted Screens

Product No.
ßHole Size
(mm)
Hole Center
(mm)
Mesh
(□”)

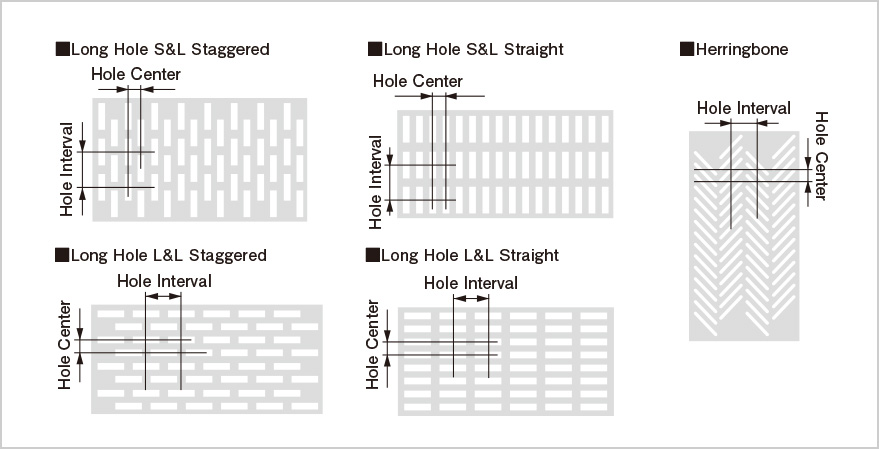

Open Area Class Hole Pattern Max. Width
(mm)
SS1
0.3/4.0 1.4 83.0 15.6% S&L Straight/Staggered 400
SS2
0.35/4.0 1.2 97.7 21.2% S&L Straight/Staggered 400
SS3
0.4/4.0 1.55 76.1 18.8% S&L Straight/Staggered 400
SS4
0.45/4.0 1.2 97.7 27.3% S&L Staggered 400
SS5
0.5/4.0 1.9 61.7 18.2% S&L Straight/Staggered 500
SS6
0.7/3.0 1.5 100.0 35.0% S&L Straight/Staggered 400
SS7
0.7/4.0 2.1 55.9 24.2% S&L・L&L Straight/Staggered 1000
SS8
0.8/16.0 2.7 12.6 25.0% S&L Staggered 215
SS9
1.2/15.0 4.0 8.1 22.5% S&L Staggered 185

Herringbone Screens

Product No.
Hole Size
(mm)
Hole Center
(mm)
Mesh
(□”)
Open Area Class Hole Pattern Max. Width
(mm)
HB1
0.7/9.4 2.51 34.7 35.4%     162
HB2
0.7/11.0 2.3 30.3 35.7%     1000
HB3
1.0/9.2 3.23 26.9 38.3%     163
HB4
1.5/14.7 4.74 11.7 40.3%     195

Square Hole Screens

Product No. Hole Size
(mm)
Hole Center
(mm)
Mesh
(□”)
Open Area Class Hole Pattern Max. Width
(mm)
KP1
1.1□ 1.6 252.0 47.3%   Straight 400
KP2
4.5□ 6.0 17.9 56.3%   Straight 410

* Inquire about other specification not listed above.
