SLOTTED RAISED-HOLE SCREENS
We pay special attention to the precision of every single hole.
Uses Air flow conveyors, fluidized bed dryers, rotating-pulsed fluidized bed dryers, grain stone separators, distilling columns, etc.
Nunobiki Manufacturing’s commitment to detail
- 1We manufacture to your specified pitch (opening (aperture) 0.4H–4.5H).
- 2Perforated area pattern can be specified.
- 3Sheets can be punched with your specified multiple hole directions.

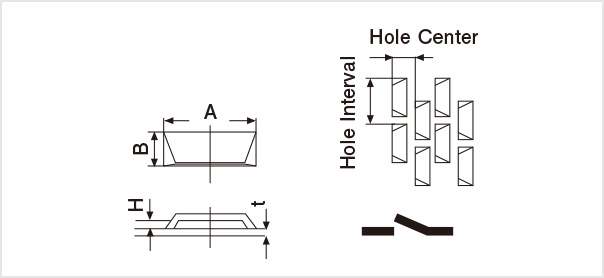

Product list
| Product No. | Thickness[t] (mm) |
Horizontal Width[A] (mm) |
Vertical Width[B] (mm) |
Aperture[H] (mm) |
Min. Hole IntervalP (mm) |
Min. Hole Center P (mm) |
Open Area | |
|---|---|---|---|---|---|---|---|---|
| SB1 | 1.0 | 12.5 | 3.80 | 1.2H | 15.5 | 5.0 | 15.48% | Details |
| SB2 | 1.5 | 12.0 | 6.00 | 1.0H | 17.0 | 11.0 | 4.84% | Details |
| SB3 | 1.2 | 14.5 | 5.00 | 0.5H | 17.0 | 6.5 | 4.84% | Details |
| SB4 | 1.2 | 16.0 | 6.00 | 1.5H | 18.5 | 7.5 | 12.21% | Details |
| SB5 | 0.8 | 14.5 | 7.00 | 0.7H | 17.5 | 8.5 | 6.07% | Details |
| SB6 | 1.5 | 16.0 | 7.00 | 1.8H | 20.0 | 11.0 | 9.00% | Details |
| SB7 | 1.5 | 12.0 | 14.20 | 1.0H | 16.0 | 18.5 | 2.72% | Details |
| SB8 | 2.0 | 24.0 | 9.00 | 3.5H | 29.0 | 12.0 | 16.59% | Details |
| SB10 | 3.0 | 18.0 | 10.50 | 1.0H | 23.0 | 16.0 | 2.46% | Details |
| SB11 | 2.0 | 15.0 | 7.00 | 1.5H | 18.0 | 9.0 | 8.52% | Details |
| SB12 | 2.0 | 60.4 | 8.00 | 2.0H | 66.0 | 12.5 | 12.55% | Details |
| SB13 | 2.0 | 22.3 | 9.00 | 2.0H | 26.0 | 13.0 | 9.02% | Details |
| SB14 | 1.2 | 14.0 | 17.52 | 1.8H | 19.0 | 22.5 | 3.71% | Details |
| SB15 | 0.8 | 22.0 | 4.30 | 1.4H | 26.5 | 8.8 | 10.99% | Details |
| SB16 | 2.0 | 18.0 | 7.50 | 2.0H | 22.0 | 11.0 | 8.26% | Details |
| SB17 | 2.0 | 26.0 | 9.00 | 3.5H | 30.0 | 12.0 | 16.04% | Details |
| SB18 | 2.0 | 35.0 | 8.00 | 2.0H | 39.0 | 11.0 | 12.59% | Details |
| SB19 | 2.0 | 27.5 | 10.00 | 4.5H | 32.0 | 13.0 | 18.93% | Details |
| SB20 | 1.5 | 6.0 | 3.00 | 0.4H | 8.5 | 5.5 | 1.60% | Details |
